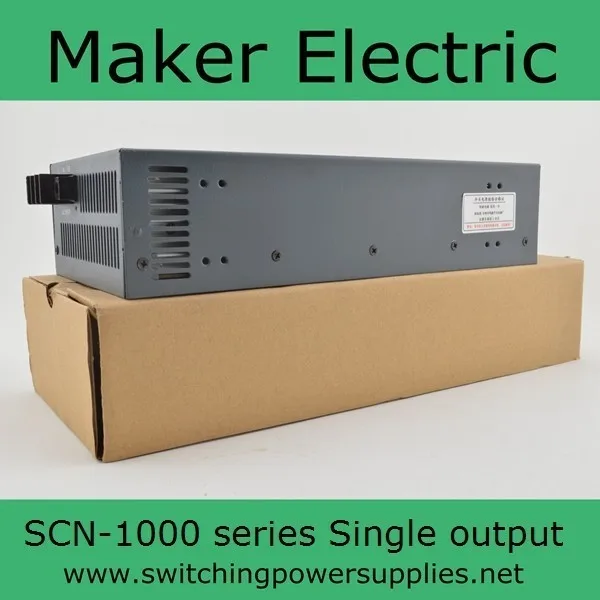

- 1000w high watts power switching supply single output 5v 100a from china manufacturer direct sale
Brand Name: makerele
Output Power: >500W
Output Type: Single
Model Number: SCN-1000-5/12/24/48
Output Frequency: 47~63Hz
Output Current: 75A/230VAC
Input Voltage: 88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz;124~370VDC
Rated Power: 1000W
Current Range: 0-100/80/40/20A
Certification: CE ROHS
Output voltage tolerance: 1%
Leakage Current: <3.5mA/240VAC
over-voltage protection: 105%~135%
Start-up,rise,hold up time: 1.5s,50ms,20ms
Outline dimension: 291*132*68mm
Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.
Model SCN-1000-5 SCN-1000-12 SCN-1000-13.5 SCN-1000-15 SCN-1000-24 SCN-1000-27 SCN-1000-48
DC Output Volta 5V 12V 13.5V 15V 24V 27V 48V
tolerance 1% 1% 1% 1% 1% 1% 1%
Rated output current 100A 80A 71A 64A 40A 35.5A 20A
Output current range 0-100A 0-80A 0-71A 0-64A 0-40A 0-35.5A 0-20A
Ripple and noise 240mVp-p 240mVp-p 240mVp-p 240mVp-p 240mVp-p 200mVp-p 300mVp-p
Inlet stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
Load stability 1% 1% 0.5% 0.5% 0.5% 0.5% 0.5%
DC output power 500W 1000W 1000W 1000W 1000W 1000W 1000W
Efficiency 84% 84% 84% 83% 85.5% 86.5% 87%
adjustable range 4.5-5.5V 10-13.2V 12-15V 13.5-18V 20-26.4V 24-30V 41-56V
Input voltage range 88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz;124~370VDC
Input current 7A/115V 3.5A/230V
Surge Current 0.95/100~240VAC
Leakage Current 18A/115V 36A/230V
Overload protection <3.5mA/240VAC
over-voltage protection 105%~135% type:FOLDBACK cut off output reset:Automatic recovery
High temperature protection 13.8~16.2V 15.5~18.2V 18~21V 27.6~32.4V 31~36.5V 57.6~67.2V
temperature coefficient RTH1 OR RTH2>=55C FAN ON,<=45C FAN OFF,>=70C cut off output
Start-up,upper,rentention time 0.03%C(0~50C)
shock resistance 1.5s,50ms,20ms
Withstand 10~500Hz,2G 10min./1circle,time:60min.,axes
Insulation Resistance Input to Output Isolation:3KVAC,input&shell:1.5KVAC output &shell:0.5KVAC
humidity Input to Output Isolation,,input&shell, output &shell:500VDC/100M Ohms
Storage Temperature,temperature -10C~+50C,20%~90%RH
EMC Standard UL1950,TUV EN60950
Outline dimension 291*132*68mm shell:910
1 The above parameters test conditions are: 230VAC input, rated load, 25 C 70% RH. Humidity.
2 Tolerance: includes set up tolerance, line stability, load stability (Note 5).
3 The ripple test: 20MHz with A12 "twisted pair, interrupted with 0.1uF & 47uF capacitor short-circuit.
4 Into the line voltage stability test: full load into the line of the minimum voltage to maximum voltage.
5 Load stability test: the load from 0% to 100%, and other output at 60% rated load.
6 The output of up to maximum current, but the overall load can not exceed the maximum output power.
7 C2, 3,11 must be dismantled.
· We Ship to Worldwide, except APO/FPO.
· Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
· Delivery time depends on destination and other factors, it may takes up to 20 business days
· Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Payment method on Aliexpress Check here help.aliexpress.com/payment_method.html
Warranty and Guarantee:
· 12 months Warranty. Buy with confidence!
· If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
· If item is defective in 3 months, We will send you a replacement without extra charges, or offer refund after we receive the defective item.
· If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee
· We are not responsible for any custom duty or import tax.
· We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
· All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms
MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.
- Custom Product Design
- Profession in export service from Maker Electric
- High quality Product, Affordable Price
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
